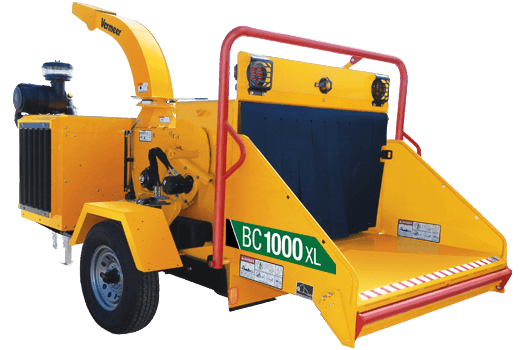

BC1000XL Tier 4i (Stage IIIB) Brush Chipper
The heavy-duty Vermeer BC1000XL brush chipper with its all-steel engine enclosure is designed to hold up for the long haul.
- Cut down on refueling time
- Choice of engine for needs
- Ease of machine upkeep
FEATURES & BENEFITS
25-gal (94.6-L) fuel tank
Keep up the pace because the BC1000XL comes with a 25-gal (94.6-L) fuel tank that lets you put in more hours before refueling.
Minimized maintenance
Minimize maintenance because once the shield is opened, belts can be changed without tools, and the clutchless PTO system eliminates the need to slide the engine.
Patented bottom feed stop bar
Provides operator safety with the patented bottom feed stop bar. The four-position upper feed control bar with dual stop positions and forward / reverse feed positions mounts over the feed table and enables the operator to stop the feed rollers and select forward or reverse operations.
SPECIFICATIONS
Engine - Option one
| Oil Filter | Spin-on |
| Make and Model | CAT C2.2L Tier 4i (Stage IIIB) |
| Clutch Drive Engagement | Belt tensioner |
| Maximum Angle of Continuous Operation | 30 deg |
| Fan | 20" (50.8) suction |
| Coolant Capacity (Engine and Radiator) | 2.3 gal |
| Clutch Type | Clutchless PTO |
| Gross Horsepower (Maximum) | 49 hp |
| Cooling Medium | Liquid |
| Max Fuel Consumption | 5.1 gph |
| Fuel Tank Capacity | 25 gal |
| Torque (Max) | 103 ft-lb |
| Alternator | 60 |
| Recommended Oil | API CH4 |
| Air Cleaner | 2-stage dry with safety element |
| Number of Cylinders | 4 |
| Oil Volume with Filter | 8.5 qt |
| Fuel Type | Diesel |
Feed System
| Number of Knives | 2 |
| Feed Roller Dimension | 20" x 17" (50.8 cm x 43.2 cm) |
| Motor Manufacturer | White |
| Number of Feed Roller Motors | 1 |
| Feed Roller Orientation | Horizontal |
| Number of Feed Rollers | 1 |
| Pinch Point - Distance to End of Feed Table | 66.5 in |
| Motor Displacement | 28.3 |
| Infeed Hopper Height | 12 in |
| Feed Roller Minimum Distance to Drum | 1 in |
| Weight of Feed Roller | 400 lbs |
| Infeed Table Length | 32 in |
| Infeed Throat Capacity | 12" H x 17" W (30.5 cm H x 43.2 cm W) |
| Feed Speed | 105 ft/min |
| Infeed Table Width | 52 in |
| Infeed Table Material Thickness | .2 in |
| Distance from Feed Table to Ground | 26 in |
| Feed Roller Clamp Load | 350 lbs |
General Dimensions and Weights
| Tongue Weight - Engine Option One | 480 lbs |
| Weight - Engine Option One | 4860 lbs |
| Sound Power | 115 |
| Height | 101 in |
| Width | 66.5 in |
| Tongue Weight - Engine Option Two | 560 lbs |
| Length - Feed Table Up, Tongue In | 157 in |
| Length - Table Down, Tongue Extended | 205 in |
Drum/Disc Cutting System
| Bedknife - Number of Useable Edges | 4 |
| Bedknife Size | 3.5" x 17.3" (8.9 cm x 43.8 cm) |
| Weight With Shaft | 460 lbs |
| Thickness | 20 in |
| Diameter | 20 in |
| Fixture Method | Weld-on |
| Number of Paddles | 3 |
| Number of Knives | 2 |
| Knife Size | .63" x 4.5" x 9" (1.6 cm x 11.4 cm x 22.9 cm) |
| Safety Lock - Number of Positions | 2 |
| Speed | 2000 rpm |
| Replaceable Threaded Knife Block | Yes |
| Number of Bolts/Knife | 4 |
| Useable Edges | 2 |
| Width | .4 in |
| Bedknife Thickness | 1 in |
| Bedknife Material | 1018 |
| Material Capacity | 12 in |
| Knife Thickness | .6 in |
| Material | A8 chipper steel |
Engine - Option two
| Number of Cylinders | 4 |
| Maximum Angle of Continuous Operation | 30 deg |
| Fuel Tank Capacity | 25 gal |
| Make and Model | Deutz TD2.9L4 Tier 4i (Stage IIIA) |
| Clutch Drive Engagement | Belt tensioner |
| Coolant Capacity (Engine and Radiator) | 3.3 gal |
| Cooling Medium | Liquid |
| Clutch Type | Clutchless PTO |
| Oil Filter | Spin-on |
| Gross Horsepower (Maximum) | 74 hp |
| Air Cleaner | 2-stage dry with safety element |
| Recommended Oil | Deutz Quality Class (DQC) III |
| Fan | 19” (48cm) suction |
| Max Fuel Consumption | 4.6 gph |
| Torque (Max) | 192 ft-lb |
| Alternator | 95 |
| Oil Volume with Filter | 8.4 qt |
| Fuel Type | Diesel |
| Weight | 5000 lbs |
| Tongue Weight | 635 lbs |
Engine - Option three
| Oil Filter | Spin-on |
| Fuel Tank Capacity | 25 gal |
| Torque (Max) | 192 ft-lb |
| Number of Cylinders | 4 |
| Air Cleaner | 2-stage dry with safety element |
| Clutch Drive Engagement | Belt tensioner |
| Cooling Medium | Liquid |
| Alternator | 95 |
| Coolant Capacity (Engine and Radiator) | 3.3 gal |
| Recommended Oil | Deutz Quality Class (DQC) III |
| Make and Model | Deutz TD2.9L4 Tier 4i (Stage IIIA) (Australia only) |
| Maximum Angle of Continuous Operation | 30 deg |
| Fan | 19” (48cm) suction |
| Gross Horsepower (Maximum) | 74 hp |
| Clutch Type | Clutchless PTO |
| Max Fuel Consumption | 4.6 gph |
| Oil Volume with Filter | 8.4 qt |
| Fuel Type | Diesel |
| Weight | 5430 lbs |
| Tongue Weight | 720 lbs |
Safety System
| Four Position Feed Control Bar | Standard |
| Bottom Feed Stop Bar | Standard |
| Green Hold to Run Button | Standard |
| Reset Method | Green hold-to-run button |
| Reduced Sensitivity | 12 deg |
| Normal Sensitivity | 22 deg |
| Actuation Force (BFSB) | 34 lbs |
| Actuation Force | 34 lbs |
| Bottom Feed Stop Bar Diameter | 2 in |
| Positions | 4: E-stop, forward, neutral and reverse |
| Bottom Feed Stop Bar Material Thickness | 11 GA |
Cutter Drive Components - Engine Option Two
| Manufacturer | Linkbelt |
| Number of Bearings | 2 |
| Belt Idler/Tensioner | Yes |
| Bore | 2.4 in |
| Belt Type | 5V |
| Type | Spherical rollers |
| Dynamic Capacity | 31400 lbs |
| Static Capacity | 53500 lbs |
Other Options
| Special Paint | Optional |
| Extended Warranty | Optional |
| Preventive Maintenance | Optional |
Cutter Drive Components - Engine Option One
| Manufacturer | Linkbelt |
| Dynamic Capacity | 31400 lbs |
| Belt Idler/Tensioner | Yes |
| Belt Type | 5V |
| Bore | 2.4 in |
| Type | Spherical rollers |
| Number of Bearings | 2 |
| Static Capacity | 53500 lbs |
Hydraulic System
| Filtration Method | 10 micron return; 100 micron suction |
| Oil Cooler | No |
| Directional Control | Yes |
| Flow Control | No |
| System relief pressure | 2500 psi |
| Tank capacity | 7 gal |
| Recommended Oil Type | Vermeer VMF |
| System Type | Open center |
| Pump Flow at Maximum RPM | 2.7 gpm |
Electrical System
| Radio Remote Control | No |
| Switches | Droop, rocker |
| Battery | Group 31; 660 CCA |
| Standard Gauges | Fuel, hour |
| System Voltage | 12 volt |
| Display | N/A |
| Controller | Vermeer ACS |
| Deluxe Gauges | Fuel, voltage, water temp, oil pressure, tach |
| Shutdown System | High temp, low pressure |
Chassis
| Fender Description | Bolt-on steel |
| Hitch Type | Pintle |
| Frame Description | 7" (17.78 cm) Z channel; .25" (0.64 cm) thickness |
| Tongue Extension | Extendable 24" (61 cm) @ 12" (30.5 cm) increments |
| Tongue Description | 2.5" x 4.5" x .25" (6.4 cm x 11.4 cm x .6 cm) |
| Manufacturer - Option Two | Dexter |
| Capacity - Option Two | 7000 lb (3175.2 |
| Axle/Suspension - Option Two | Torsion |
| Tires - Option One | ST235/80/R16 Load Range E |
| Axle/Suspension | Torsion |
| Wheels - Option Two | 16" x 6" (40.6 cm x 15.2 cm) |
| Tires - Option Two | ST235/80/R16 Load Range E |
| Capacity - Option One | 5200 |
| Manufacturer - Option One | Dexter |
| Type - Option One | Rubber torsional |
| Wheels - Option One | 16" (40.6) |
| Type - Option Two | Rubber Torsional |
| Trailer Light Type | LED |
| Brake Type | Standard Electric or optional hydraulic |
Discharge System
| Rotation Type | Chain-drivve manual crank with pin lock |
| Rotational Lock | Yes |
| Chute Rotation Angle | 270 deg |
| Chute Height | 101 in |
