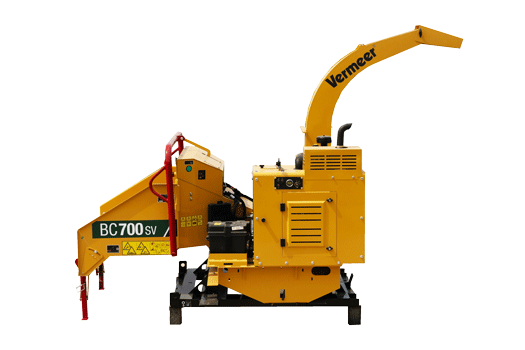

BC700SV Brush Chipper
Maximum mobility
- Fuel efficient
- Facilitates transportation of equipment
- Greater feeding efficiency
- Operator safety in mind
- Minimizes maintenance
- Enhanced productivity
FEATURES & BENEFITS
25-hp (18.6-kW) Kohler ECH740 engine
Performs well during cold weather, minimizes occurrence of engine flooding and provides improved fuel economy over comparable carbureted gas engines. Diesel engine option also available.
Large infeed opening of 6 in x 8 in (15.2 cm x 20.3 cm)
Makes feeding of irregular material efficient and minimizes the amount of saw cuts needed prior to feeding the chipper.
Convenient to transport skid-mounted chassis
Facilitates the transportation of equipment to help overcome local road regulation restrictions.
SmartFeed control system
Maximizes operator productivity and minimizes strain on vital motor parts.
Bottom feed stop bar
Built with operator safety in mind, the bottom stop feed bar is strategically located to make it possible for an operator to strike the bar and shut off the feed mechanism.
Centrifugal clutch
Helps prevent belt slip when engaging the clutch, minimizing maintenance.
SPECIFICATIONS
Feed System
| Number of Knives | 2 |
| Feed Roller Dimension | 10 in (25.4 cm) |
| Motor Manufacturer | White Hydraulics |
| Number of Feed Roller Motors | 1 |
| Feed Roller Orientation | Horizontal |
| Number of Feed Rollers | 1 |
| Feed Roller Clamp Type | Spring/feed roller weight |
| Pinch Point - Distance to End of Feed Table | 65.4 in |
| Motor Displacement | 14.2 |
| Infeed Hopper Height | 22.1 in |
| Number of Knives (2) | 2 |
| Feed Roller Minimum Distance to Drum | 4 in |
| Weight of Feed Roller | 100 lbs |
| Infeed Table Length | 30.2 in |
| Infeed Throat Capacity | 6 in x 8 in (15.2 cm x 20.3 cm) |
| Feed Speed | 49.4 ft/min |
| Infeed Table Width | 41.2 in |
| Distance from Feed Table to Ground | 28.1 in |
| Feed Roller Clamp Load | 525 lbs |
General Dimensions and Weights
| Tongue Weight - Engine Option One | 2015 lbs |
| Height | 74.8 in |
| Width | 57 in |
| Weight (without winch and hydraulic jack) | 2015 lbs |
| Length - Feed Table Up, Tongue In | 66.9 in |
| Length - Table Down, Tongue Extended | 89 in |
Engine - Option one
| Make and Model | Perkins 403D-11 |
| Gross Horsepower (Maximum) | 25 hp |
| Fuel Tank Capacity | 6 gal |
| Torque (Max) | 49.3 ft-lb |
| Recommended Oil | Kohler oil or API CH4/SJ |
| Number of Cylinders | 3 |
| Fuel Type | Diesel |
Drum/Disc Cutting System
| Bedknife Size | Horizontal: 4 in x 8.6 in (10.2 cm x 21.9 cm); Vertical: 4 in x 5.8 in (10.2 cm x 14.6 cm) |
| Weight With Shaft | 176 lbs |
| Air Flow | 5000 cfm |
| Thickness | 1.3 in |
| Diameter | 23.9 in |
| Fixture Method | Welded |
| Number of Knives | 2 |
| Safety Lock - Number of Positions | 2 |
| Speed | 1748 rpm |
| Replaceable Threaded Knife Block | Yes |
| Useable Edges | 2 |
| Width | 8 in |
| Bedknife Material | ASTM A572 Grade 50 |
| Material Capacity | 6 in |
| Knife Thickness | .6 in |
| Material | A8 chipper steel |
Engine - Option two
| Number of Cylinders | 2 |
| Fuel Tank Capacity | 6 gal |
| Make and Model | Kohler ECH740 |
| Gross Horsepower (Maximum) | 25 hp |
| Recommended Oil | Kohler Oil or API CH4/SJ |
| Torque (Max) | 41.7 ft-lb |
| Fuel Type | Gasoline |
Safety System
| Four Position Feed Control Bar | Standard |
| Bottom Feed Stop Bar | Standard |
| Green Hold to Run Button | Standard |
| Reset Method | Dual green hold-to-run buttons |
| Diameter | 2 in |
| Bottom Feed Stop Bar Diameter | 2 in |
| Material Thickness | .1 in |
| Positions | Four positions: E-stop, Forward, Stop, Reverse |
| Bottom Feed Stop Bar Material Thickness | 12 in (30.48 cm) |
Cutter Drive Components - Engine Option One
| Manufacturer | Linkbelt |
| Dynamic Capacity | 5640 lbs |
| Belt Idler/Tensioner | Spring-loaded adjustable idler |
| Belt Type | 2-band 5-V profile Aramid |
| Bore | 1.5 in |
| Type | Flange-mounted ball type, self-aligning |
| Number of Bearings | 2 |
| Static Capacity | 4460 lbs |
Hydraulic System
| Filtration Method | Return flow filtration, 10 micron |
| System relief pressure | 2500 psi |
| Tank capacity | 6.8 gal |
| Recommended Oil Type | Vermeer VMF Gold |
| System Type | Open center |
| Pump Flow at Maximum RPM | 3.8 gpm |
Electrical System
| Switches | Hold-to-run, sensitivity selector |
| Battery | Group 26, 400 CCA |
| Standard Gauges | Hour meter |
| System Voltage | 12 volt |
| Controller | Vermeer ACS CB02 |
Discharge System
| Rotation Type | Manual |
| Rotational Lock | Standard latch |
| Chute Rotation Angle | 270 deg |
| Deflector Thickness | .1 in |
| Chute Height | 97.2 in |
| Side Wall Thickness | .1 in |
| Bottom Thickness | .1 in |
| Top Thickness | .1 in |
